Tabletop Plan Review

Plan Review Tabletop Touch

Large, Bright, Tilt Adjust, 32" 43" Touch Screens

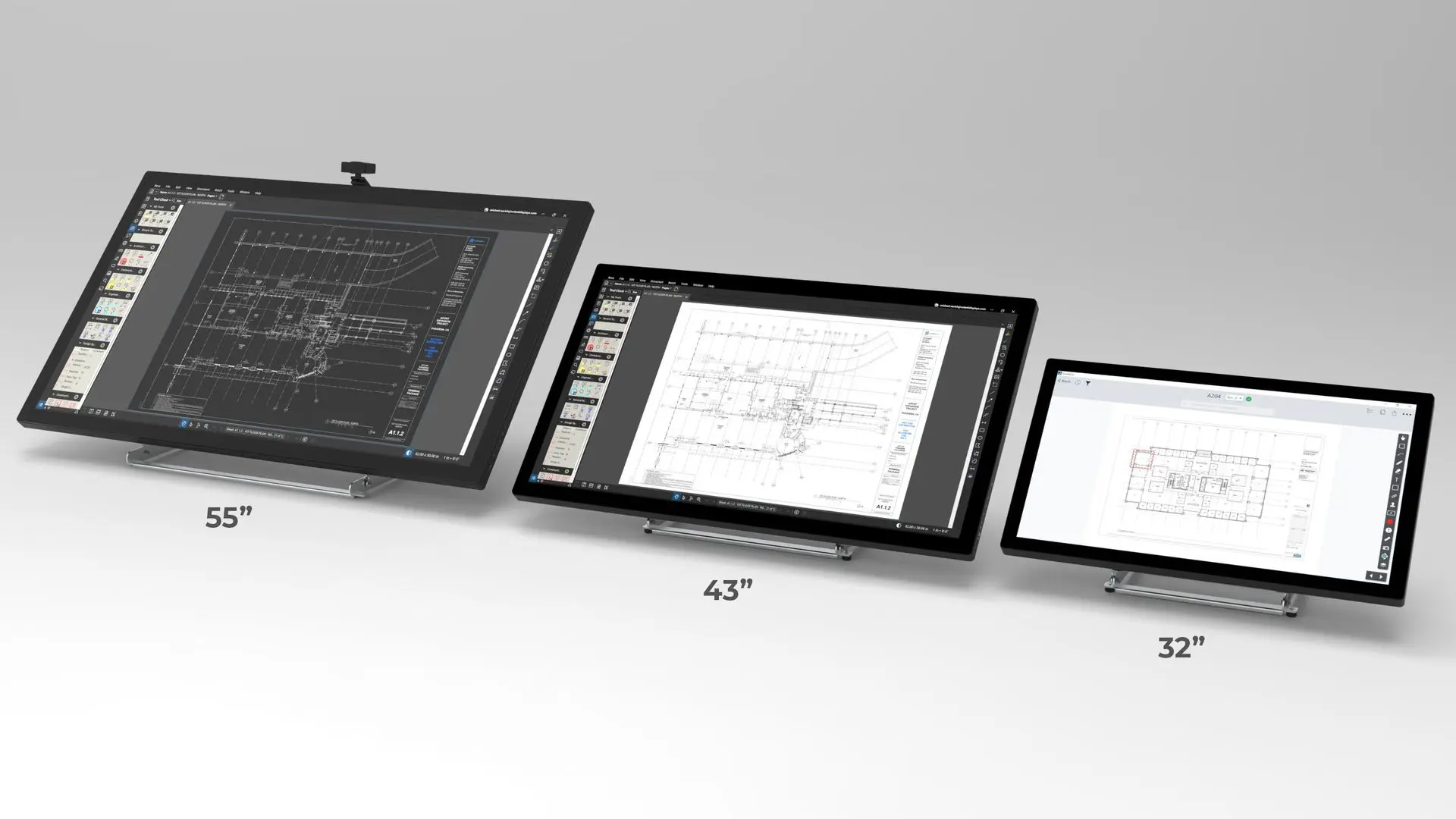

32" 43" Touch Screens

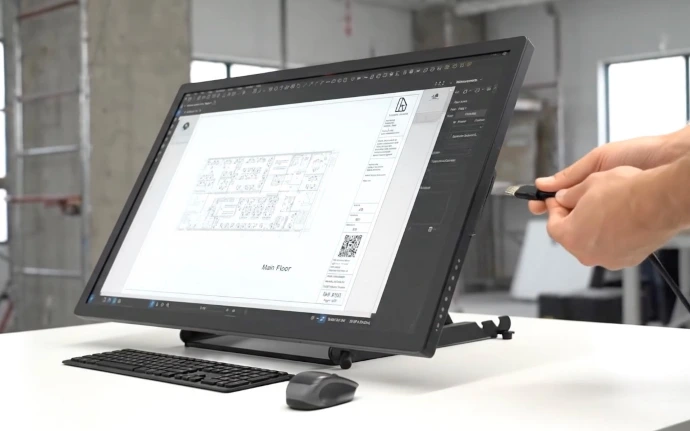

The Volanti tabletop plan review touch screen display features an Ultra-HD (4k) 32" or 43" display. The ability to set the display angle provides an ergonomic workspace for applications such as Bluebeam, Plangrid, Procore, ArcGIS and other graphics based applications.

For orders or questions: Contact us by form, or phone 408.500.3500

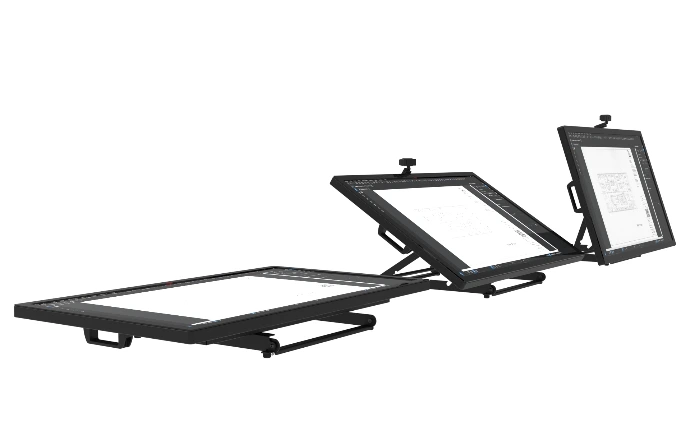

image showing all the tilt angles of the monitor

Tilt Angles

image of the 32 inch tabletop model

32" Tabletop

image of the 43 inch tabletop model

43" Tabletop

High Resolution

Large Ultra-HD Multi-Touch Monitor

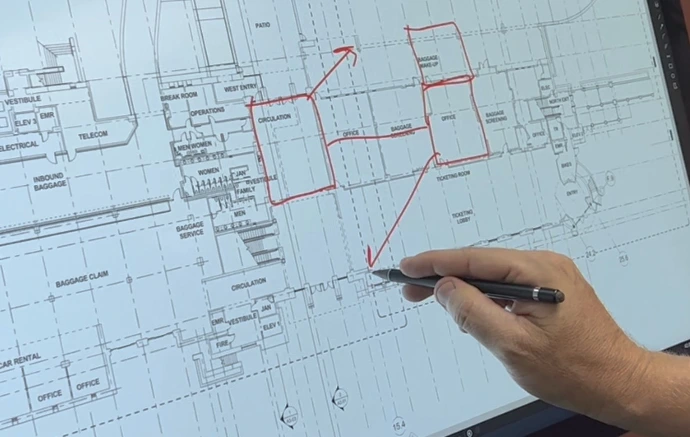

Multi-touch

Pinch, Zoom, Pan

Flat Edge-to-Edge

Easy to clean

High Resolution 4K

Ultra-HD sharp images

High Quality

Fabricated in California

Brighter Display

Bright LED Backlit

Responsive

Low Latency Touch

Multiple inputs

2 x HDMI

Toughened Glass

Optically bonded

Aluminum Enclosure

Powder coated






These are the same Volanti touch screen monitors as here: Volanti touch monitors.

tabletop plan review table, view from the right tabltop plan review table, view from the left tabletop plan review table, view of the back

Enclosure & Tabletop Stand: Solid Quality

The Base: Solid Quality

Stylish, ergonomic and very functional, the monitor enclosure is power coated aluminum, the tabletop stand is made of solid stainless steel, laser cut then brush finished with height adjustable rubber feet. The base is custom designed for the monitor to provide excellent stability for this interactive plan review monitor.

Tilt

Flat, 30°, 40°, 50°, 60°, 70°,

Footprint (max)

32": 29"x17", 43": 40"x24"

USA Quality

California design & fabrication



Mobile Cart Option

Mobile Cart Option

tabletop plan review table, view of the back

Robust cart for Volanti 32" and 43" tabletop displays. Ample space for equipment such as PC, laptop, backup power. Folding shelves for added convenience. Keyboard & mouse tray drawer. Large easy roll locking wheels or fixed feet option.

Tilt

Flat, 30°, 40°, 50°, 60°, 70°,

Supports Both Sizes

32" and 43"

USA Quality

California design & fabrication



Applications

Applications

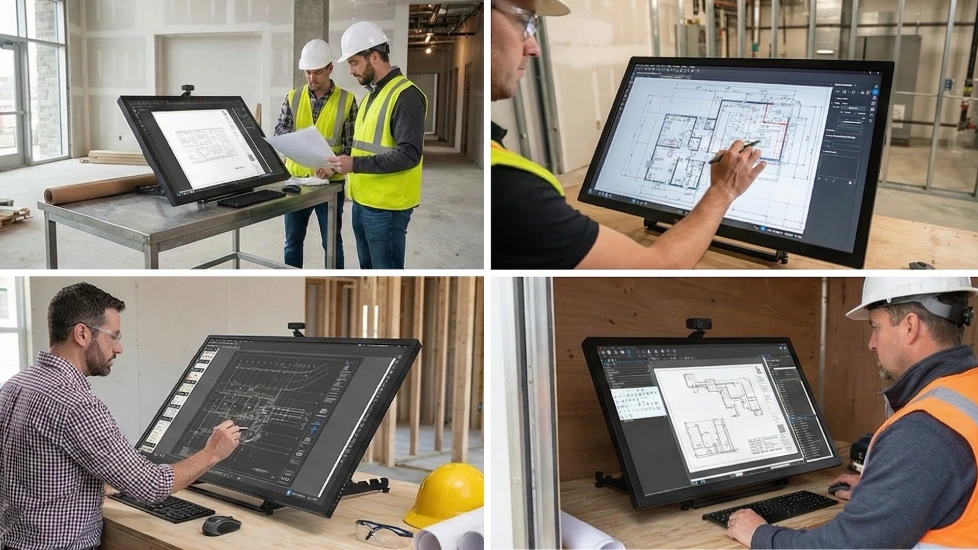

The Volanti tabletop touch screen is a versatile and ergonomic solution for a wide range of personal applications such as plan review, design, map review and other commercial applications.

Design & CAD

Plan Review

Presentations

Kanban

Mapping

Construction

As a tabletop plan table, Bluebeam Revu, Procore, Plangrid are popular applications together with ArcGIS and mapping software. For CAD and 3D viewing apps from Adobe, Autodesk Revit and similar are all compatible. For digital whiteboard the Microsoft Digital Whiteboard app works well.

Downloads

Downloads

Brochures Plan Review touch screen, 32" & 43"
Plan Review tabletop cart
Quick Start Guide 32" touch monitor

43" touch monitor, also see blog Quickstart 43" Plan Review Tabletop Monitor Setup
Dimensions 32" tabletop touch monitor

43" tabletop touch monitor

Specifications

Specifications

Design and final assembly in California, USA for commercial use. For orders or questions: Contact us.

TOUCH
32" 4K
43" 4K
Design Edge-to-edge flush design - no raised bezel Edge-to-edge flush design - no raised bezel
Simultaneous Touches 10 point 10 point
Accuracy <1.5mm accuracy <1.5mm accuracy
Touch Finger, gloves Finger, gloves, active stylus
Compatibility Windows 7/8/10/11, No drivers needed.
All Microsoft Windows software
Windows 7/8/10/11, No drivers needed.
All Microsoft Windows software
DISPLAY
32" 4K
43" 4K
LCD Display 32" LCD with LED backlight 43" LCD with LED backlight
Resolution 3840 x 2160, 4K 3840 x 2160, 4K
Brightness 300 nits 400 nits
Contrast Ratio 3000:1 1000:1
Colors 1.07 Billion 1.07 Billion
Viewing Angle 178° Horizontal & Vertical 178° Horizontal & Vertical
Dimensions 29"W x 17"H 40"W x 23.8"H
INPUTS
32" 4K
43" 4K
HDMI 2 x HDMI 2.0 - 4K @ 60hz 2 x HDMI 2.0 - 4K @ 60hz
DVI Supports 1080p @ 60hz Supports 1080p @ 60hz
VGA 1 x DB15 1920x1080 @ 60hz 1 x DB15 1920x1080 @ 60hz
SETTINGS
32" 4K
43" 4K
Display:
Buttons & IR
Ethernet, RS-232
Brightness, contrast, sharpness, color, temperature, backlight brightness, PiP/PbP Brightness, contrast, sharpness, color, temperature, backlight brightness, PiP/PbP
STAND
32" 4K
43" 4K
Tilt Angles 30°, 40°, 50°, 60°, 70° 30°, 40°, 50°, 60°, 70°
Construction Stainless steel Stainless steel
Mounting Size 300 x 300mm 400 x 400mm
OTHER
32" 4K
43" 4K
Cover Glass 3.2mm, Temperature strengthened 3.2mm, Chemically strengthened
Touch Glass Integration Optical bonding Optical bonding
Power Power supply - 100-240VAC, 50/60hz Power supply - 100-240VAC, 50/60hz
Operating Conditions 0 to +50°C 0 to +50°C
Weight 32lbs 47lbs
Shipping Weight 42lbs 58lbs
PART NUMBERS
32" 4K
43" 4K
Plan Review VD-324K-T-T VD-434K-T-T
ACCESSORY OPTIONS
32" 4K
43" 4K
Webcam mount VT-CAM VT-CAM

Note: * Contact us for compatible models
